| Herkunftsort: | Shenzhen, China |
|---|---|
| Markenname: | J&R |
| Zertifizierung: | CE, FCC, RoHS, ISO9001 |
| Modellnummer: | JR210-1B |
| Min Bestellmenge: | 1-teilig |
| Preis: | US$249-US$359 |
| Verpackung Informationen: | J&R-Standardverpackung, Perlenbaumwolle, Karton |
| Lieferzeit: | 3-7 Werktage nach Zahlung |
| Zahlungsbedingungen: | L/C, T/T, Western Union, Paypal |
| Versorgungsmaterial-Fähigkeit: | 10000PCS pro Monat |
| Größe: | 300*180*161 (Millimeter) | Farbe: | Rot oder besonders angefertigt |
|---|---|---|---|
| Material: | Kaltgewalzter Stahl | Funktion: | Kommunikation |
| Installation: | Wandmontage | Ruflautstärke: | 90~95dB (A) in einem Abstand von 1 m |
| Temperatur: | Funktionieren: -30°C zu +65°C | Eintritt-Schutz-Bewertung: | IP54-IP65 |
| Garantie: | 2 Jahre | Nettogewicht: | 4 Kilogramm |
| Markieren: | Hotline-Telefon des Landstraßen-Notfallpas,Wetterfestes PAS-Hotline-Telefon,Beständiges Telefon des Stahlwetter-IP54 |
||
﹄Product Description﹃

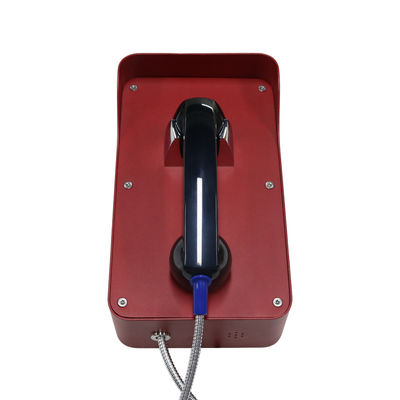

JR210-1B Weatherproof Highway Emergency Public SOS Hotline Telephone
Handset Telephone,One button for speed dial,Cold-rolled steel body,Red color(other colour on demand),
Unit size:300*180*161(mm)
Housed in a anti-vandal cold-rolled steel enclosure,wall-mounting
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
﹄Features﹃
Weatherproof Highway Emergency Public SOS Hotline Telephone
﹄Applications﹃
Weatherproof Highway Emergency Public SOS Hotline Telephone
This vandal resistant telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
﹄Packing﹃
Weatherproof Highway Emergency Public SOS Hotline Telephone
| Unit Size | 204 *339 *196 (mm) |
| Carton Size | 200 *300 *440 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 5 KG |
| Gross Weight | 6 KG |
